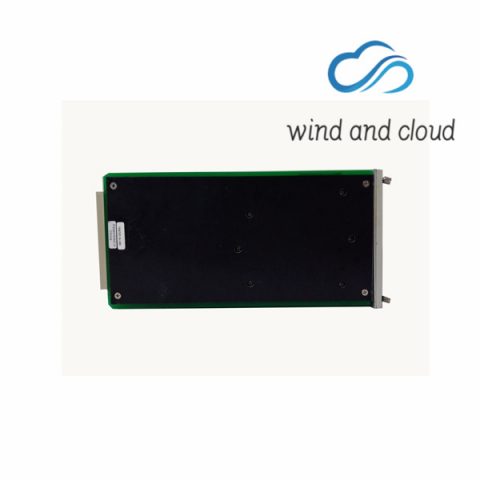

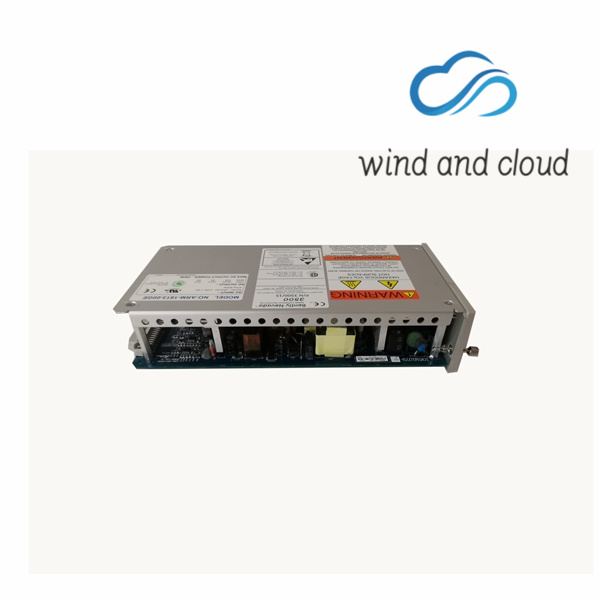

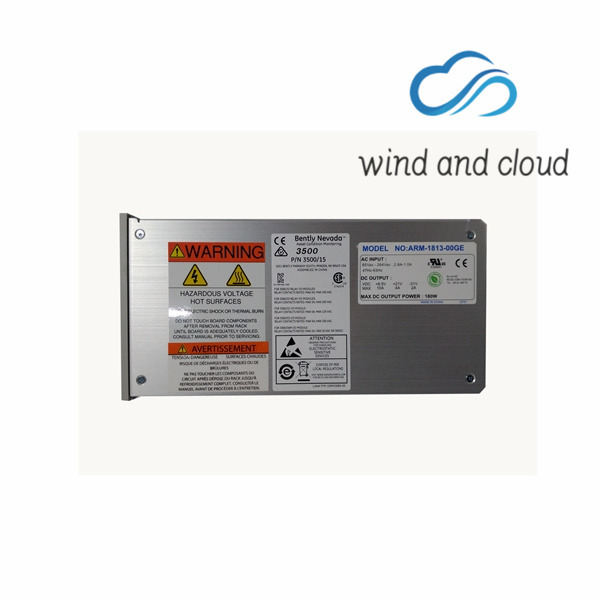

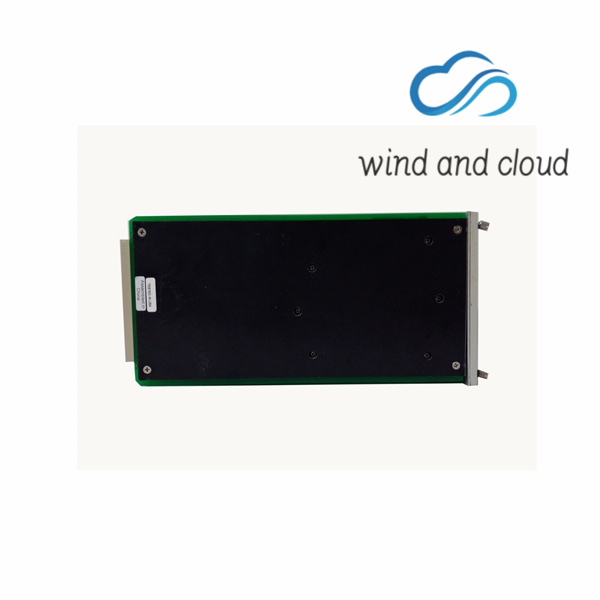

3500/15 106M1079-0 BENTLY Microprocessor Technology Design

3500 Monitoring System: Designed using the latest in proven microprocessor technology, the 3500 is a full-feature monitoring system. In addition to
meeting the above stated criteria, the 3500 adds benefit in the following areas:
• Enhanced Operator Information
• Improved integration to plant control computer
• Reduced installation and maintenance cost
• Improved reliability
• Intrinsic Safety option
Enhanced Operator Information: The 3500 was designed to both enhance
the operator’s information and present it in a way that is easy for the operator
to interpret. These features include:
• Improved Data Set
– Overall Amplitude
– Probe Gap Voltage
– 1X Amplitude and Phase
– 2X Amplitude and Phase
– Not 1X Amplitude
• Windows® Based Operator Display Software

3500 Monitoring System Rack Configuration and Utilities Guide ( 129777-01)
• guidelines for using the 3500 Rack Configuration software for setting the operating parameters of the module
• guidelines for using the 3500 test utilities to verify that the input and output terminals on the
module are operating properly
3500 Monitoring System Computer Hardware and Software Manual (128158-01)
• instructions for connecting the rack to 3500 host computer
• procedures for verifying communication
• procedures for installing software
• guidelines for using Data Acquisition / DDE Server and Operator Display Software
• procedures and diagrams for setting up network and remote communications
3500 Field Wiring Diagram Package (130432-01)
• diagrams that show how to hook up a particular transducer
• lists of recommended wiring

The prices of all products of Zhangzhou Fengyun may fluctuate at any time. The specific price is subject to the customer service quotation. Please confirm the model, product, price and other details with the customer service before placing the order. Second-hand and brand-new products are sold in the store. Please contact the customer service for details.
