B&R 3BP150.41｜ACOPOS AUTOMATION ｜

$9,549.00

In stock

Manufacturer：3BP150.41

Modular Mechanical Design: Utilizes plug-in modules for flexible configuration.
Integrated Line Filter: Ensures compliance with electromagnetic compatibility standards.
Integrated Braking Resistor: Facilitates dynamic braking to control motor deceleration.
Plug-in Connectors: All connections are made using easy-to-use plug-in connectors, simplifying installation and maintenance.
Integrated Electronic Restart Inhibit: Prevents accidental restarts, enhancing safety during maintenance and power cycles.

Categories: B&R

AAll products on this website are discounted products, and market prices have been fluctuating. Please refer to customer service quotes for details. Pictures are not actual photos. Before placing an order, please confirm the model, product, price, and other detailed information with customer service. Both second-hand and brand new products are available for sale on this website. Please contact customer service for further communication.

Modular Mechanical Design: Utilizes plug-in modules for flexible configuration.
Integrated Line Filter: Ensures compliance with electromagnetic compatibility standards.
Integrated Braking Resistor: Facilitates dynamic braking to control motor deceleration.
Plug-in Connectors: All connections are made using easy-to-use plug-in connectors, simplifying installation and maintenance.
Integrated Electronic Restart Inhibit: Prevents accidental restarts, enhancing safety during maintenance and power cycles.

B&R 3BP150.41｜ACOPOS AUTOMATION ｜

Name: B&amp;R 3BP150.41｜ACOPOS AUTOMATION ｜
SKU: 29285
Price: 9549.00 USD
Availability: InStock

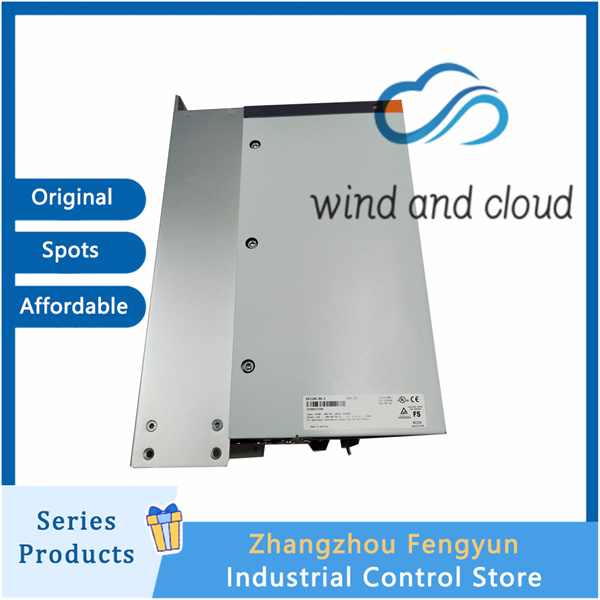

B&R 3BP150.41｜ACOPOS AUTOMATION ｜illustration

Product Overview: 8V1090.00-2

General Information

B&R ID Code: 0x12C8
Slots for Plug-in Modules: 4

Certification

CE: Yes
cULus: Yes
KC: Yes
FSC: Yes

Mains Connector

Permissible Power Mains Forms:
- TT
- TN (with specific conditions) 1)
Mains Input Voltage:
- 3x 400 VAC to 480 VAC ±10%
- 3x 230 VAC ±10% 2)
Frequency: 50 / 60 Hz ±4%
Installed Load: Max. 10 kVA
Starting Current at 400 VAC: 7 A
Switch-on Interval: >10 s
Integrated Line Filter: Yes, in accordance with EN 61800-3, Category C3 3)

Power Loss

Power Loss at Max. Device Power Without Braking Resistor: Approx. 200 W

DC Bus Connection

DC Bus Capacitance: 470 µF

24 VDC Supply

Input Voltage: 24 VDC ±25% 4)
Input Capacitance: 8200 µF
Current Consumption: Max. 2.5 A + current for motor holding brake 5)

Footnotes

TN mains forms: Additional specific conditions may apply.
3x 230 VAC: Special conditions or configurations might be required.
Integrated Line Filter: Compliant with the EN 61800-3 standard for electromagnetic compatibility.
24 VDC Input Voltage: Allowable variation is ±25%.
Current Consumption: The maximum value includes the current for the motor holding brake.

This detailed technical specification provides all the necessary information for understanding the electrical and functional requirements of the product.

B&R 3BP150.41｜ACOPOS AUTOMATION ｜

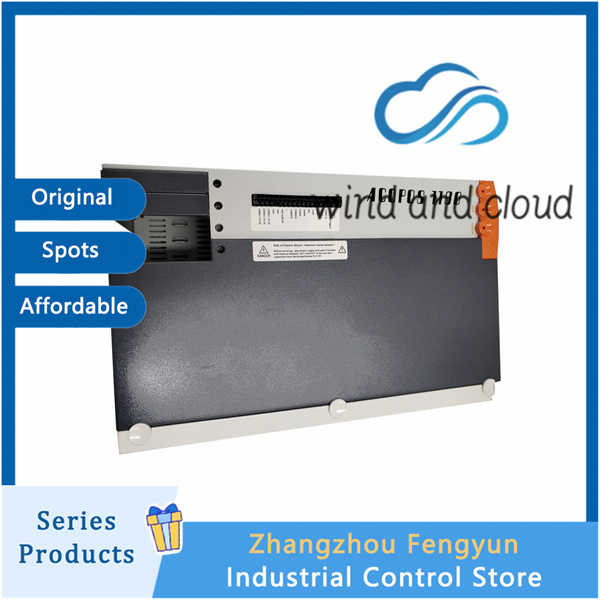

B&R 3BP150.41｜ACOPOS AUTOMATION ｜illustration1

By structuring the information in this manner, the article provides a clear and organized understanding of input channels, transducer supply, and communication implementations in distributed control systems.
