DSDI 110A 32 (4 x 8) channels, 24 V d.c., controlled by scanning or interrupt
DSTD 150A / DSTD 190 DSTK 221L3

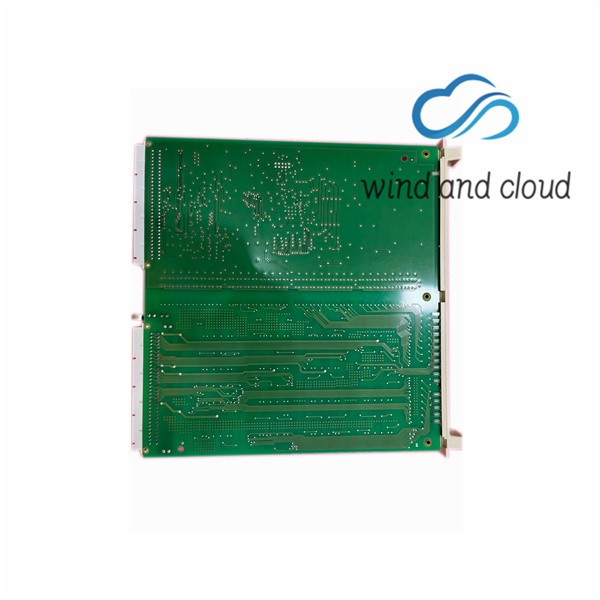

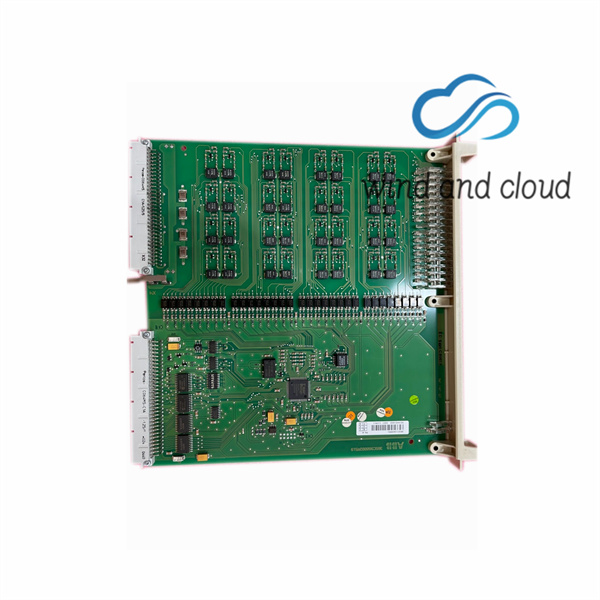

DSDI 110AV1 32 (4 x 8) channels, 24 V d.c., controlled by scanning or interrupt
DSTD 150A / DSTD 190V1 DSTK 221L3
Scanned or interrupt-controlled 24 V d.c. inputs. You can configure the inputs for pulse catching, that is, with filter times of 100 ms at switch-on and 2 s at switch-off. This function is especially well suited for setting keys (push buttons). In the connection unit, the current supply is divided into two groups of 16 channels each. Each group has a common 0 V. This does not prevent external voltage supply and fusing for smaller groups of channels but naturally requires that the 0 V sides can be connected. The two groups are galvanically isolated from the internal electronics.
32 scanned or interrupt-controlled digital inputs. You can configure the inputs for pulse catching, that is, with filter times of 100 ms at switch-on and 2 s at switch-off. This function is especially well suited for setting keys (push buttons). You can connect up to four of the connection units listed below to this board and cable. Division between the different connection units is a free choice. The properties of the inputs are decided by the selected connection units. Each connection unit contains eight inputs.
A connection unit with eight inputs for 24 V d.c. The inputs have common 0V and bias of -24 V, which means that there is 48 V over the connection. DSTD 196P has pluggable screw terminals.
DSDI 120A
DSTD 150A / DSTD 190, DSTK 221L3
DSDI 120AV1, DSTD 150A/DSTD 190V1
DSTK 221L3
