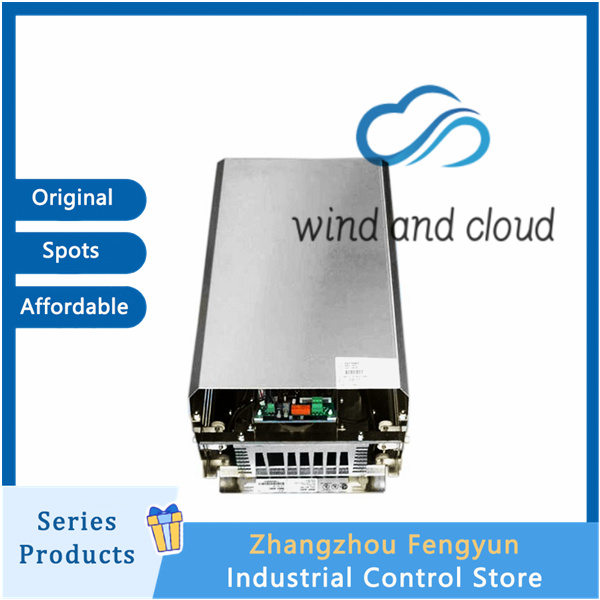

ABB NE870 3BSE080239R1｜Optimal inverter｜

• Product ID:

  3BHL001433P0001

• ABB Type Designation:

  Q-0730-A

• Catalog Description:

  Q-0730-A; DEIONIZER

• Long Description:

  Q-0730-A

ABB Ability Symphony Plus SD Series HPC800 is a highperformance, high-capacity process controller that is used to support the plant’s total control requirements.

Highlights Included in ABB Ability SymphonyPlus is a comprehensive suite of standards-based control hardware and software that meets the requirements of total plant automation. The SD Series represents the latest addition to the Symphony Plus controller and I/O family. SD Series HPC800 control-based system solutions feature modular DIN-rail packaging; a flexible, highperformance Fast Ethernet-based plant network; intelligent field device integration; PROFIBUS and HART communication protocols; integrated turbine control. Furthermore, HPC800 controlbased solutions protect investments made in previous generation controllers while delivering higher performance, reliability and capacity.

Dimensions

• Product Net Weight:

  14.1 kg

• Product Net Depth / Length:

  828 mm

• Product Net Height:

  196.9 mm

• Product Net Width:

  191.8 mm

• Package Level 1 Depth / Length:

  828 mm

• Package Level 1 Height:

  196.9 mm

• Package Level 1 Width:

  191.8 mm

• Package Level 1 Units:

  1 piece

The SD Series HPC800 is a high-performance, high-capacity process controller that is used to support the plant’s total control requirements, from discrete and continuous, to advanced control applications. The HPC800’s controller environment executes demanding process control applications that are both data and program intensive.

S+ Operations, S+ Engineering and other applications communicate with HPC800 controllers over the system’s high-speed, high-throughput and high-security 100 Mbps Fast Ethernet-based redundant Plant Network (PN800). The network centric architecture allows for integration of field devices, process and electrical system areas, and business enterprise systems in a simple, scalable, seamless and secure manner.

Simultaneously, the HPC800 connects to DIN-rail mounted SD Series and S800 I/O modules, as well as traditional Rack I/O modules. Intelligent I/O devices such as smart transmitters, actuators, intelligent electronic devices (IEDs) are easily integrated through industry-standard fieldbuses and protocols (PROFIBUS DP/PA, HART, IEC 61850, Modbus TCP, IEC 60870-5-104, DNP 3.0, etc). Each device’s resident information can be used in control strategies and higher-level applications in order to produce tighter and more reliable process control solutions.

The HPC800 controller uses ABB’s extensive set of field-proven standard function code algorithms and S+ Engineering’s graphical design tools to develop its control strategies. By using the same function code algorithms as previous generations of Symphony and INFI 90 controllers, the HPC800 supports the easy and risk-free porting of installed control execution environments.
