The design of the SYN 5202 guarantees a degree of security against incorrect paralleling which satisfies the most demanding requirements, because the different processor types in the individual channels are equipped with different software and completely separate measuring units and command relays. The program sequence is interrupted and reset by the internal watchdog, if an error occurs. After reset, it is again started automatically. This starting procedure is carried out three times, afterwards the device is totally blocked with the corresponding error message.

After expiry of the set total paralleling time tot t, the monitoring of external events indicates failure by the control system or measuring signals to fulfil conditions, as well as implausible configuration. If necessary, t tot can be set to zero. This deactivates this monitoring function.

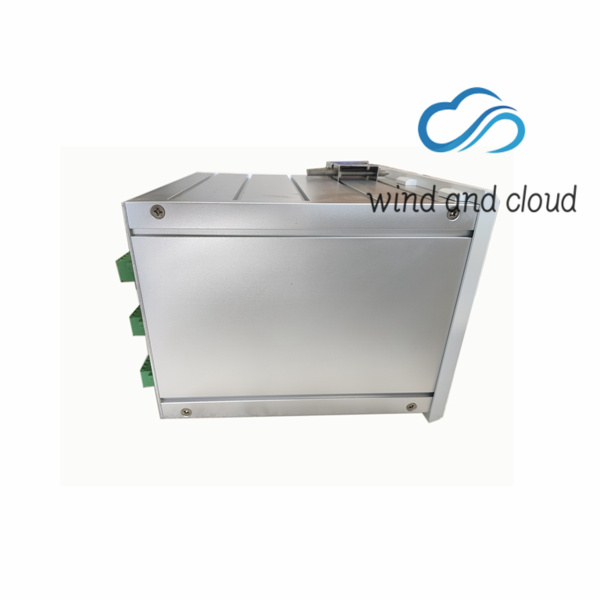

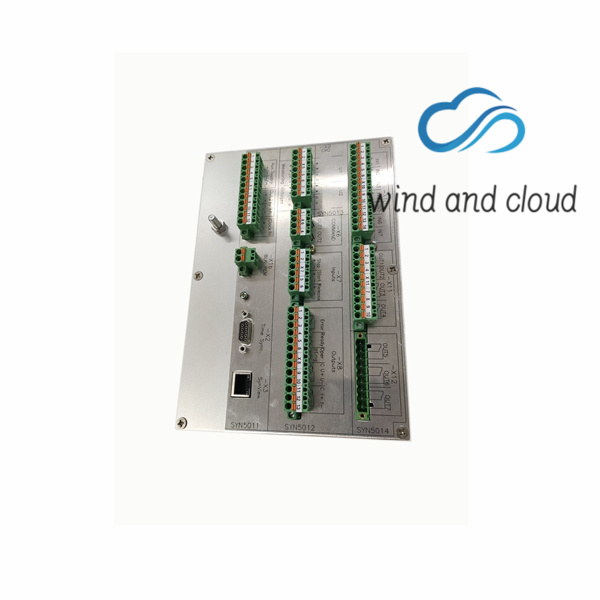

SYN 5010 communications board (option)
Mount of a slot for the operating remote control interface.
SYN 5011 processor and electronics power supply
Electronics power supply 24 to 250 VDC and 100 to 230 VAC
Processor and memory modules
A/D converter
SYN 5012 basic I/O unit
Measuring inputs
Digital inputs for Start, Stop, Release dead bus
Digital outputs (relay contacts) for paralleling command, adjusting commands, signalling
(Ready, Operating, Error).
SYN 5013 synchrocheck
Synchrocheck with separate measuring inputs, processor and command relay
SYN 5014 I/O expansion (option)
7 configurable digital inputs
7 configurable digital outputs
For the use of several parameter sets or individually configurable signals

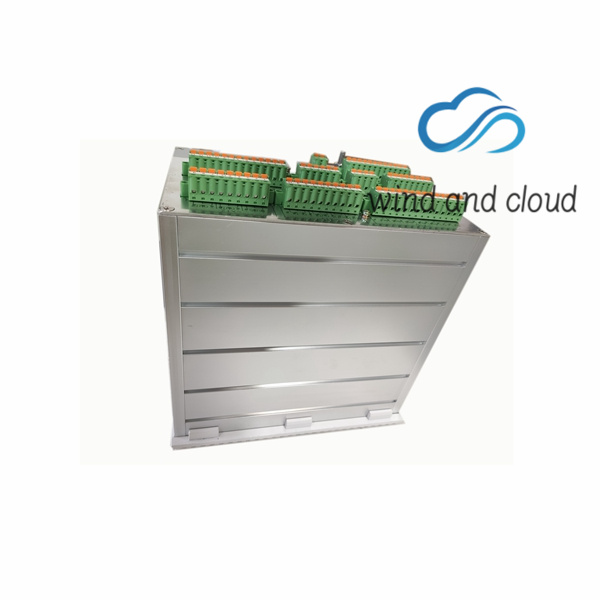

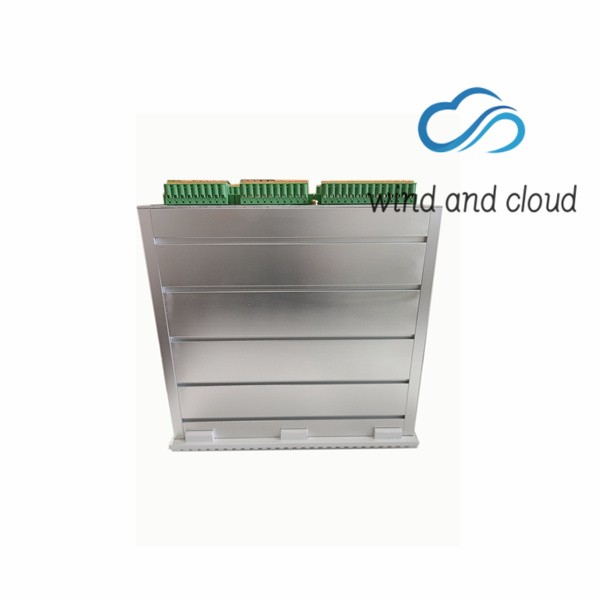

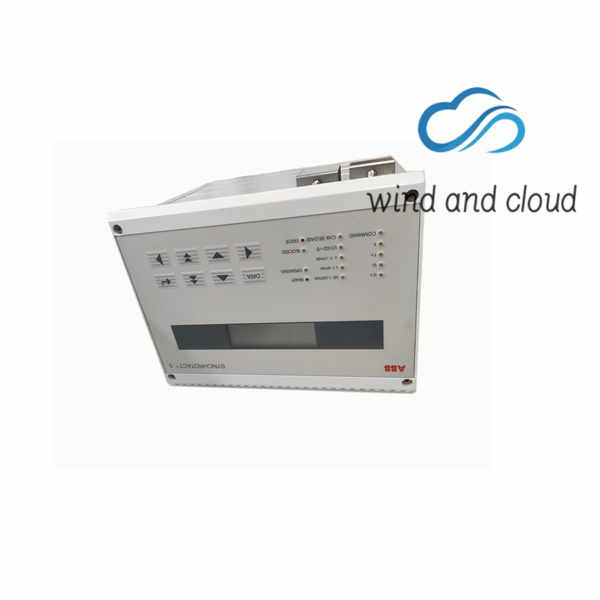

SYN 5015 control/display
Connecting board behind the front cover with control unit and status displays
