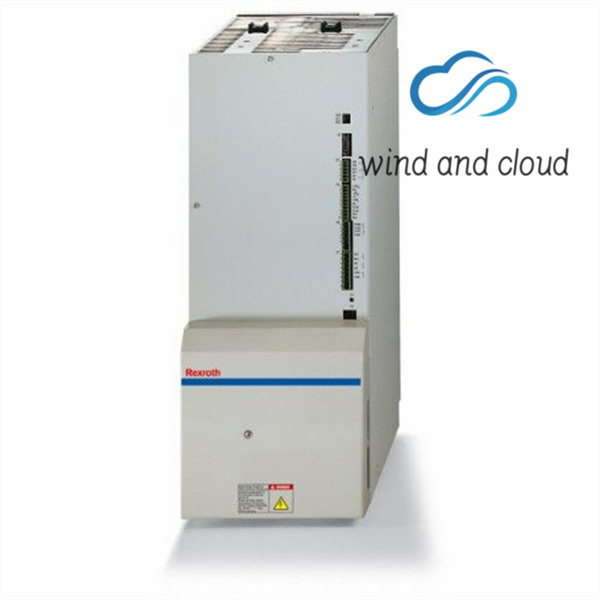

HDS02.2-W040N-HS12-01-FW REXROTH Drive controller

The configuration type platerecords the type designations of
• the configured drive controller
• the basic unit
• the software module
• and the plug-in modules in slots
• U1 to U4 in HDS
• U1 to U2 in HDD
These type designations help identify which components are in which
slots.
In the event of a problem, these type designations on the configuration
type plate can be used to quickly identify the replacement parts needed.
The rated data of the controllers apply to
• ambient temperatures of +5º to +45º C
• Installation elevations from 0 to 1000 meters above sea level.
If the controllers are to be used outside of the indicated range, then it is
necessary to take the “load factors” into consideration. This reduces the
output data.
⇒ In such cases as these, check whether the output data suffice for your
application. To determine the load factors, please see Fig. 4-6. Values
for temperature and installation exceeding those indicated are not
permissible!
