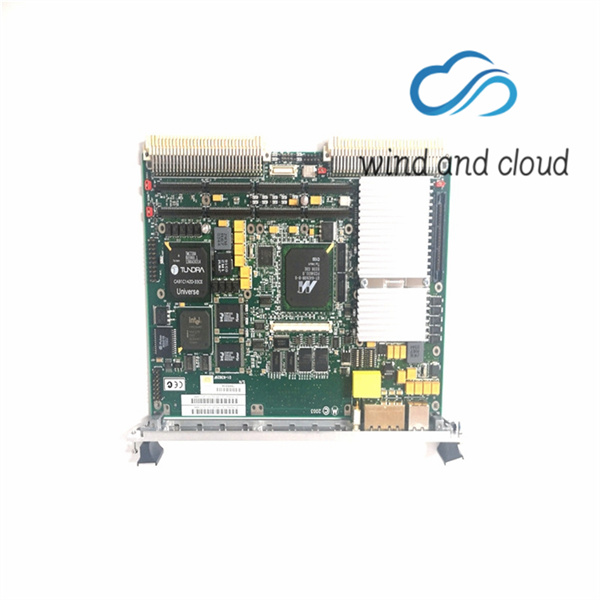

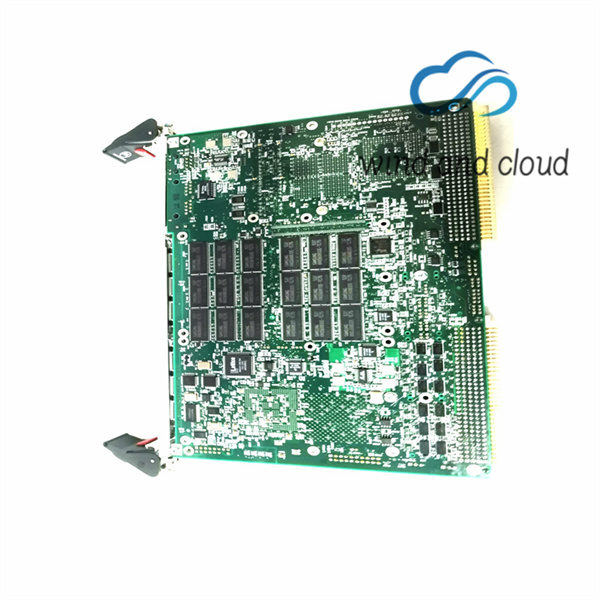

MVME5500 MOTOROLA Supports two configurable jumpers

The MVME5500 continues the direction that Emerson
started with the MVME5100 series of providing a
migration path from Emerson’s embedded controllers
and single-board computers (SBCs) to a single
platform. This migration path enables OEMs to
support varying I/O requirements with the same base
platform, simplifying part number maintenance,
technical expertise requirements and sparing.
The MVME5500 series offers customers a migration
path from the MVME2300, MVME2400, MVME2600,
MVME2700 and MVME5100 boards to allow them to
take advantage of features such as the MPC7455
processor, Gigabit Ethernet and dual independent
33/66 MHz PMC sites.
IPMC Modules
The IPMC761 and IPMC712 are optional add-on PMC
modules that provide backward compatibility with
previous generation Emerson products (such as
MVME2600, MVME2700 and MVME5100 in IPMC mode)
using the MVME761 or MVME712M transition module.
IPMC modules provide rear I/O support for the following

One single-ended Ultra Wide SCSI port
One parallel port
Four serial ports (two or three async and one or two
sync/async, depending on module)
With an IPMC installed, one PMC slot is still available,
providing support for OEM product customization.
P2 I/O Modes
The MVME5500 series supports two, jumper-configurable
P2 I/O modes: PMC mode and IPMC mode. PMC mode
is backward compatible with the MVME2300/
MVME2400 and MVME5100 in PMC mode. In PMC
mode, 64 pins from PMC slot 1 and 46 pins from PMC
slot 2 are available on P2 for PMC rear I/O. In IPMC
mode, the MVME5500 series supports legacy
MVME761 or MVME712M I/O modules (with limited
PMC I/O) when an IPMC761 or IPMC712 PMC card is
populated in PMC slot 1. In this configuration, PMC
slot 2 contains some signals that are reserved for
extended SCSI.
