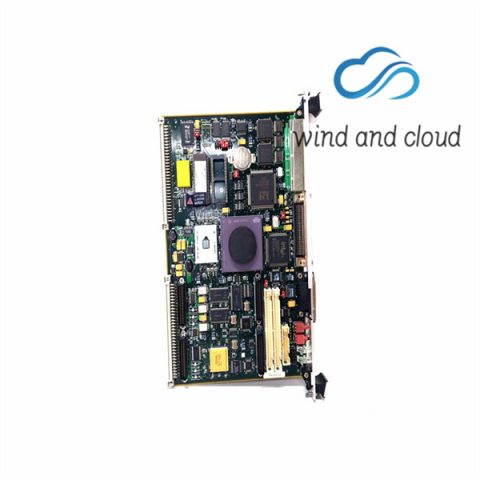

VME172PA-652SE-2G MOTOROLA MC68060 microprocessor Ethernet interface board

VME172PA-652SE-2G Feature 200/300-Series 400/500-Series
Processor 60 MHz 32-bit MC68060 microprocessor, or 64 MHz 32-bit
MC68LC060 microprocessor
DRAM 4MB, 8 MB, or 16 MB of shared
DRAM with parity protection on a
mezzanine module, or up to 64 MB of
ECC-protected DRAM
4MB, 8 MB, or 16 MB of shared
DRAM with no protection
SRAM 128 KB of SRAM with battery
backup
512KB of SRAM with battery backup
PROM/
EPROM
Sockets
Two JEDEC standard 32-pin DIP
PROM sockets
One JEDEC standard 32-pin
PLCC EPROM socket (EPROMs
may be shipped separately)
Flash One Intel 28F016SA 2M x 8 Flash memory device (2MB Flash memory
total) with write protection (optional)
NVRAM and
TOD
VME172PA-652SE-2G 8K by 8 Non-Volatile RAM (NVRAM) and Time-of-Day (TOD) clock with
battery backup
Timers Four 32-bit Tick Timers and Watchdog Timer (in the MC2 Chip ASIC) for
periodic interrupts
Two 32-bit Tick Timers and Watchdog Timer in the VMEchip2 ASIC) for
periodic interrupts
Software
Interrupts
Eight software interrupts (for MVME172 versions that have the VMEchip2)
I/O Four serial ports, both EIA-232-D RJ45
Two serial ports; one EIA-232-D
DCE, one EIA-232-D DCE/DTE or
EIA-530 DCE/DTE or EIA-42
DCE/DTE or EIA-485
Serial port controllers (Zilog Z85230)
Optional Small Computer Systems Interface (SCSI) bus interface with 32-bit
local bus burst Direct Memory Access (DMA) (NCR 53C710 controller)
Optional LAN Ethernet transceiver interface with 32-bit local bus DMA (Inter
82596CA controller)

These boards are designed to conform to the requirements of the following
documents:
VMEbus Specification (IEEE 1014-87)
EIA-232-D Serial Interface Specification, EIA
SCSI Specification, ANSI
IndustryPack Specification, GreenSpring
