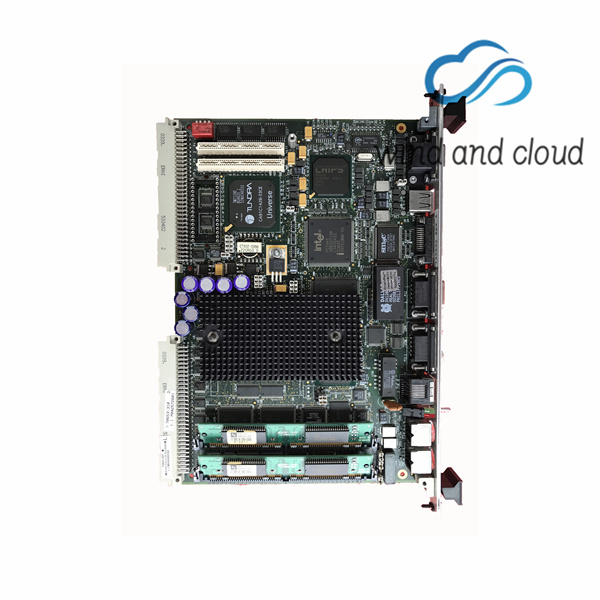

The XVME-653 is a powerful VMEbus PC compatible processor module from Xycom Automation, the pioneer and leader in VMEbus PC technology. This powerful single-slot VMEbus processor integrates a 233 MHz MMX Pentium CPU with a PCI-to-VMEbus interface and allows users to take advantage of the powerful multiprocessing capability of the VMEbus while utilizing standard off-the-shelf PC software and operating systems. At the core of the XVME-653 module is the Intel 233MHz MMX CPU combined with 512K of synchronous Level 2 pipeline cache and up to 256 MB of fast-page or EDO DRAM.
The module contains a wide breadth of I/O including PCI Graphics, EIDE and Ethernet controllers, one Universal Serial Bus (USB) Port, two high-speed serial ports, one EPP/ECP parallel port, and PS/2 style keyboard and mouse ports. Further I/O expansion is available using Xycom Automation’s modular I/O carrier modules (XVME-976), which provide a mechanism to expand your system using PMC, PC/ 104, short ISA or PCI modules. The XVME-653 module is an unbeatable solution for power and I/O on a single-slot VMEbus module.
Graphics support is provided by a highly integrated SVGA controller with an internal 2 MB 83 MHz SDRAM frame buffer. Resolutions of up to 1280 × 1024 with 256 colors are supported. The controller uses a 64-bit internal graphics engine with hardware BitBLT to enhance Windows GUI performance. SVGA output is available at the module front panel in standard 15-pin D shell connector.
The XVME-653 contains a state-of-the-art Intel 82558 10/100 Mbit Ethernet controller with a 32-bit PCI bus mastering interface to support bus transfers of 100 Mbits per second. The RJ-45 connector on the module’s front panel provides autosensing for 10 BaseT and 100 BaseTX connections.
